Not to be confused with the Ebox 3 72v!

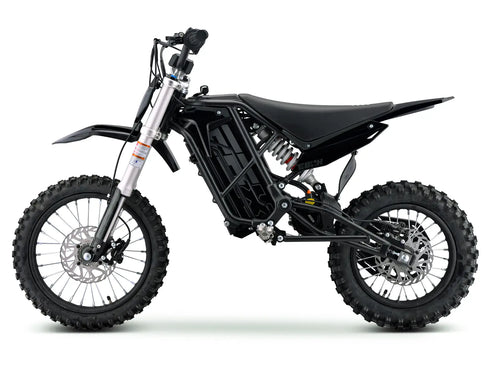

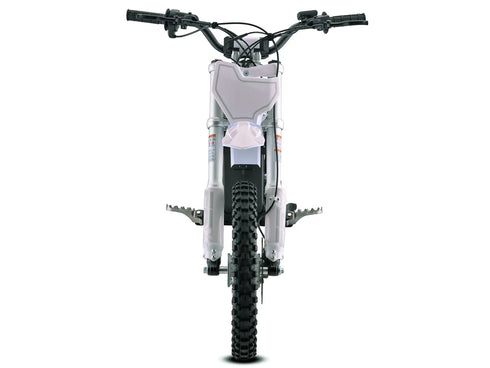

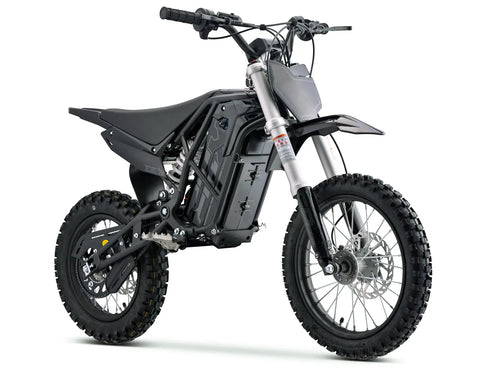

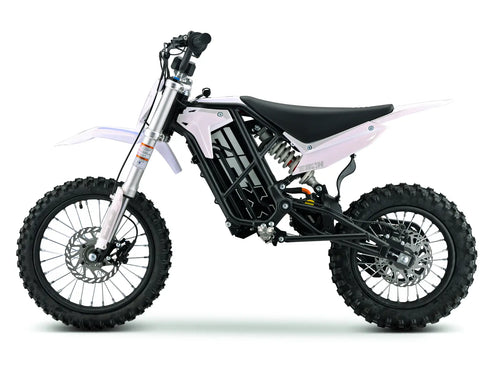

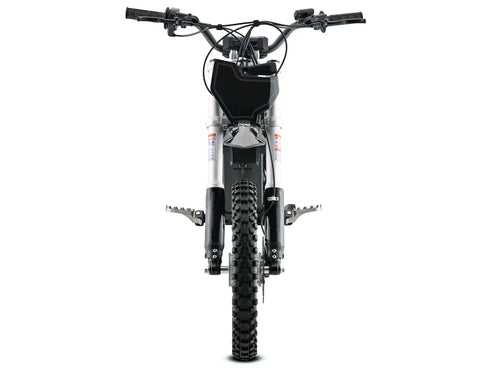

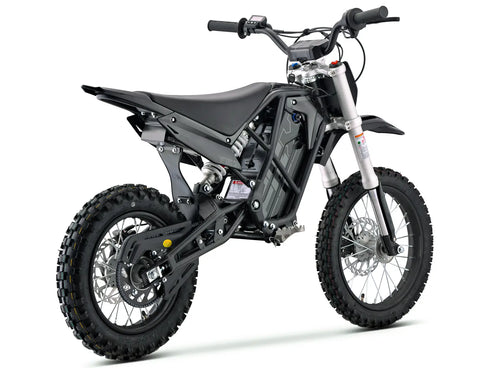

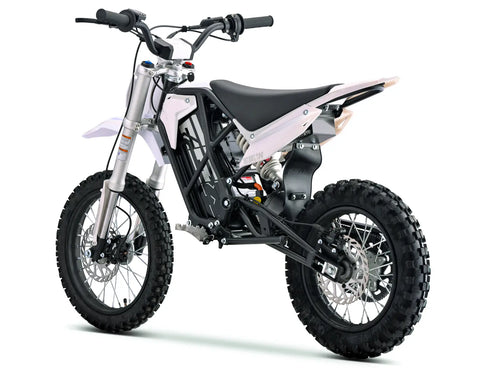

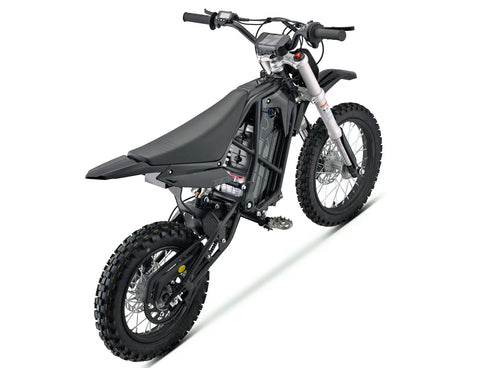

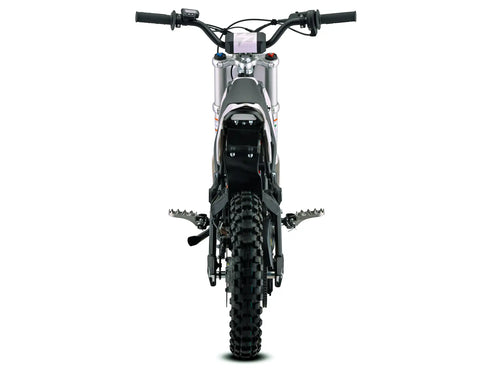

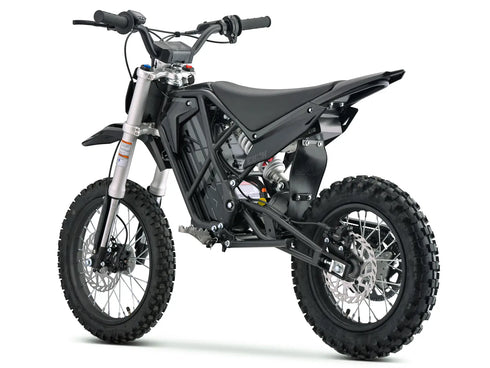

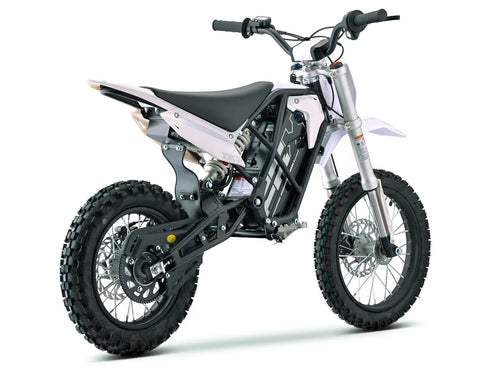

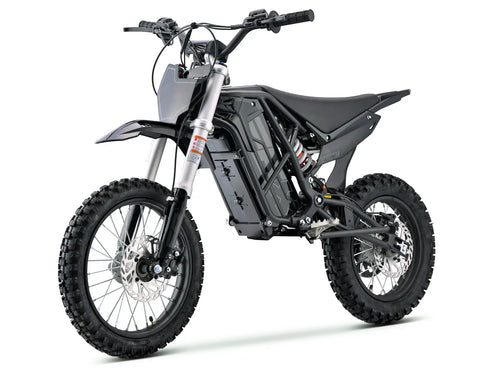

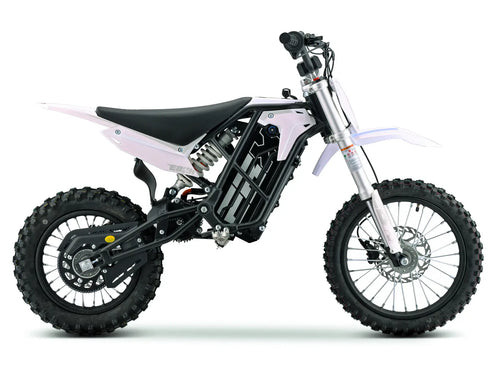

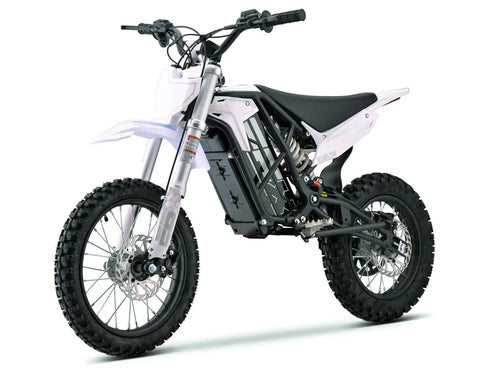

The EBOX V3 has finally arrived! You wanted more power, more punch, more range, more control and a higher top speed?? We listened to you, and we delivered all of that and more, featuring the brand new EBX powertrain!
Bigger batteries, a Fardriver 80A controller and a high power PMSM motor with encoder and temperature feedback with up to 6.3kW. There are no hall sensors to fail and the precise control of the encoder, provides laser sharp coil firing for increased efficiency and maximum performance.
Added to that we have included a colour TFT display with 3-speed modes and fault-finding capability. Our warranty has been increased to 1 year, (or 1000 miles) on all powertrain components (battery, controller, motor). What does this mean? Basically, peaking top speeds of up to 55 mph! New colourways, new tyres and all in the same mini package you can throw in the trunk of your car.
| Frame Design | Double Cradle V3 wide frame (183mm), race inspired revised geometry. Increased fork travel, increased pre-load and heavier oil. Standard Footpeg. |
|---|---|
| Bar Risers | Alloy Cast 36mm rise Ø22.2 |
| Handlebar | 6061 T6 EBOX High Rise 1pc |
| Front Suspension | 150mm travel USD |
| Wheel Size | 14/12 |
| Tyres | 60/100-14 & 80/100-12 Dirt |
| Front Brake | Hyraulic Disc (Right lever) e-moto brakes, 180mm rotor, 4 bolt |
| Rear Brake | Hyraulic Disc (Left lever) e-moto brakes, 180mm rotor, 4 bolt |
| Gearing | Front 10T, rear 70T |
| Chain | 219H 108L |
| Motor | 60V EBX PMSM motor with temp feedback and encoder |
| Motor Voltage | 60V |
| Peak Power | 3.7KW (5hp) |
| Rated Power | 3.3KW |
| Max RPM | 7,500 |
| Battery | 60v 18.2Ah battery 18,600 cells with QS8 connector |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 67.2V, 3A |
| Charge Time | 5-6 hours |
| Range Per Charge | 21-25 miles (35-40Km) |
| External Adjustability | 3 riding modes |
| Top Speed | 45mph (72Km/h) |
| Waterproof | IP54 |
| Wheelbase | 980mm |
| Seat Height | 650mm |
| Built to Race | B2R |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty |
